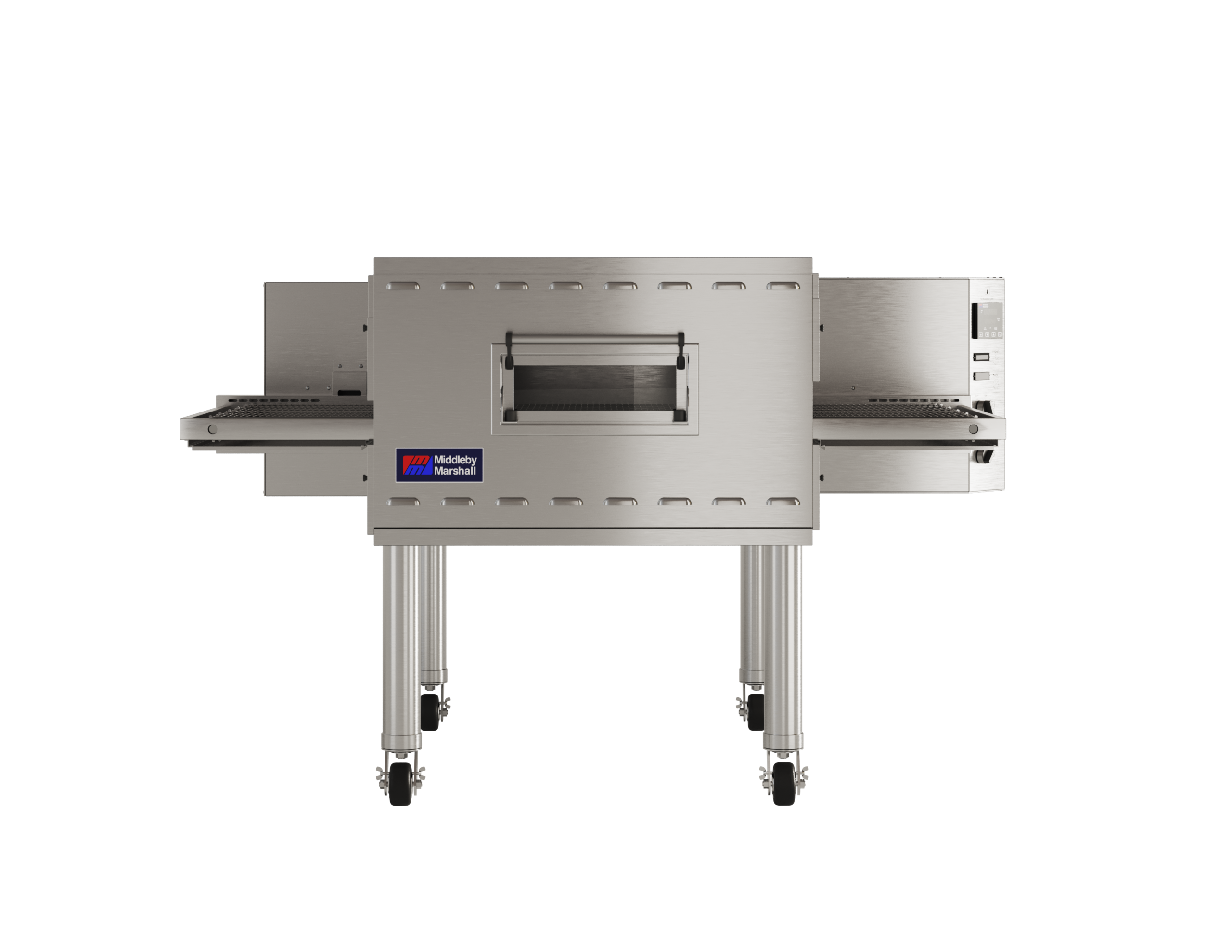

PS540 Gas or Electric Impingement Conveyor Oven
- Impingement PLUS! Low oven profile and dual air return
- EMS Energy Management System (gas ovens only)
- Patented “Jet Sweep” impingement process that delivers constant heat to the chamber
- Microprocessor-controlled bake time/conveyor speed
- Customer-specific adjustable jet fingers that allow control of heating zones
- Stainless steel front, sides, top and interior
- Front-loading window with cool handle
- Reversible conveyor direction
- Stackable up to three units high
Additional Options:
- Split belt two 9” [229 mm] belts with individually adjustable speed settings
- Adjustable legs (replace casters)
Specifications
| Heating Zone | 40.5" | 1028 mm |
| Baking Area | 9 sq. ft. | 0.837 cu. m. |
| Belt Length | 76.5" | 1943 mm |
| Overall Length | 80" | 2032 mm |
| Height | 47.125" | 1197 mm |
| Depth | 56.625" | 1437 mm |
| Rear of Conveyor to Wall Clearance | 6" | 152 mm |
| Control End to Wall Clearance | 0" | 0 mm |
| Non-control Clearance | 0" | 0 mm |
| Bake Operating Time | 600°F | 315°C |
| Time Range | :30-14:30 |
